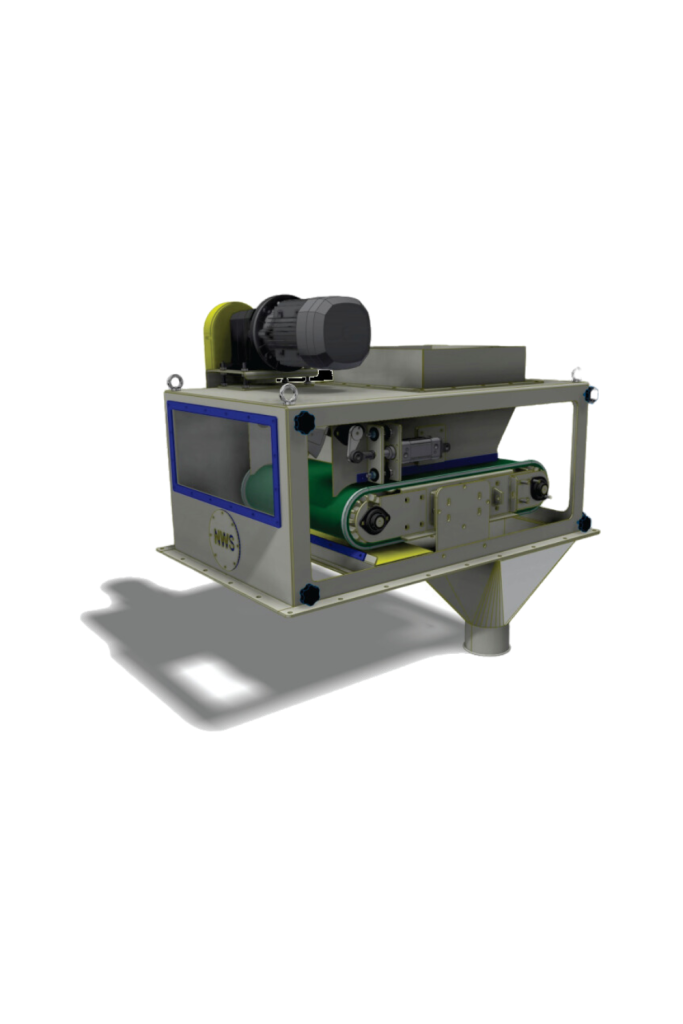

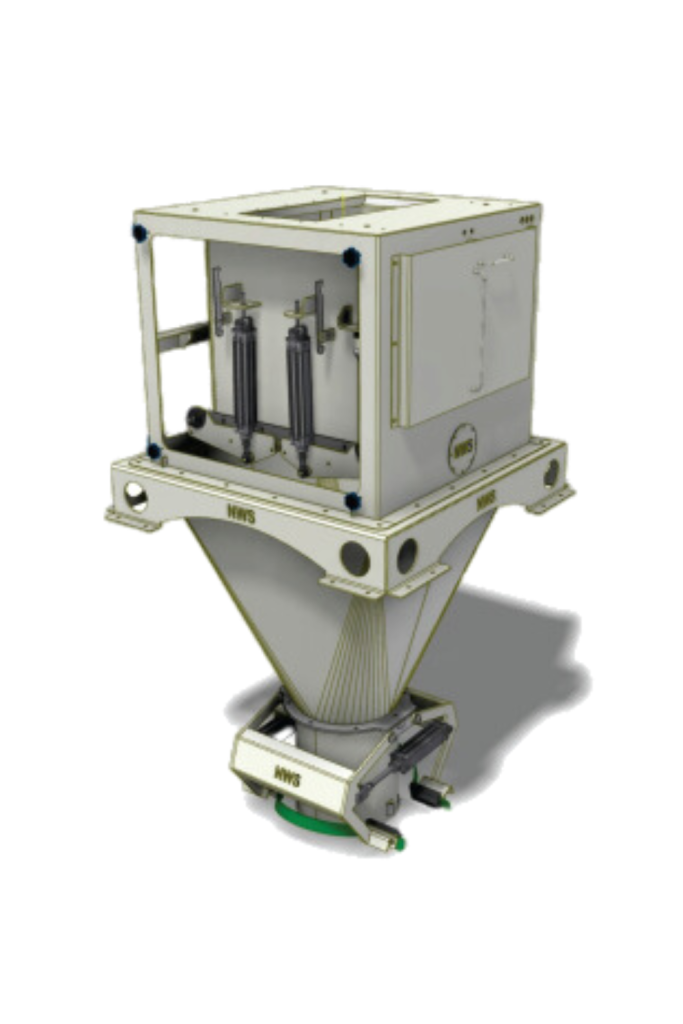

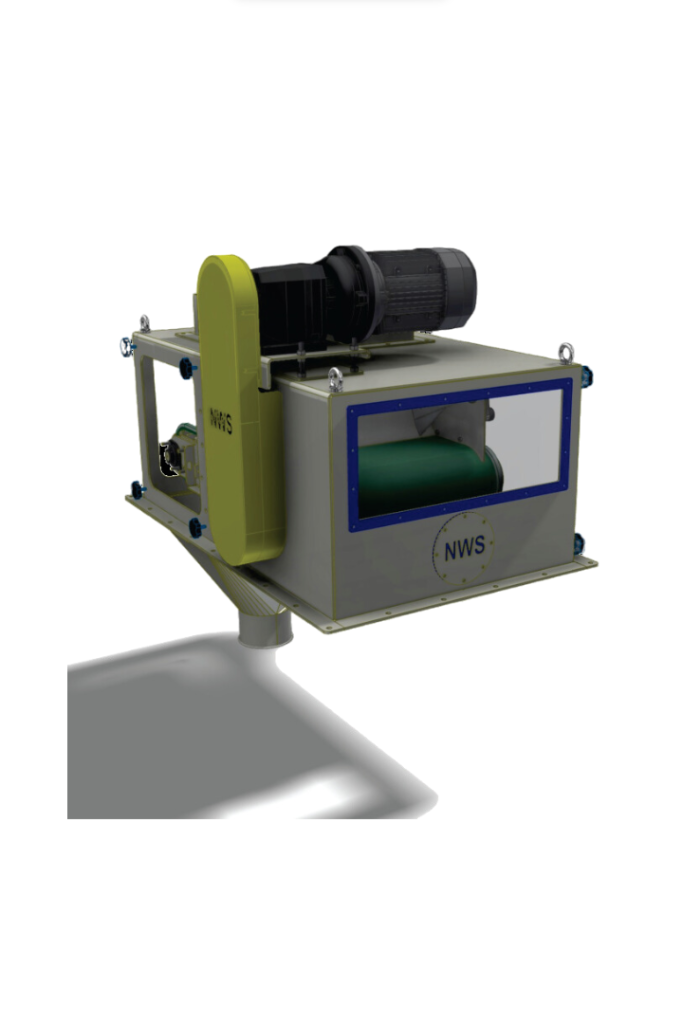

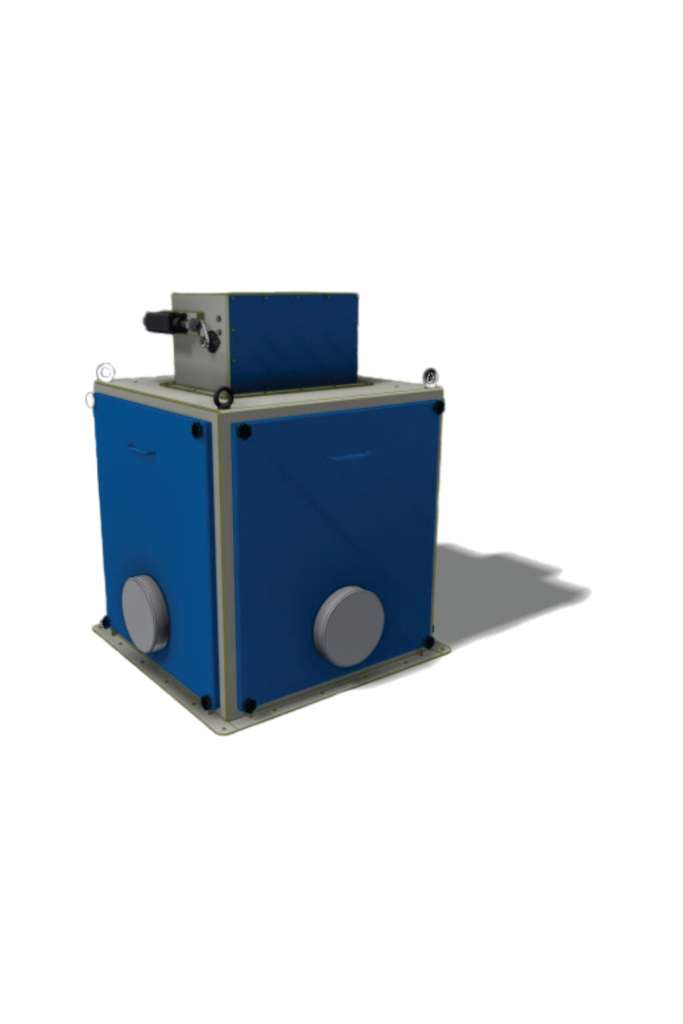

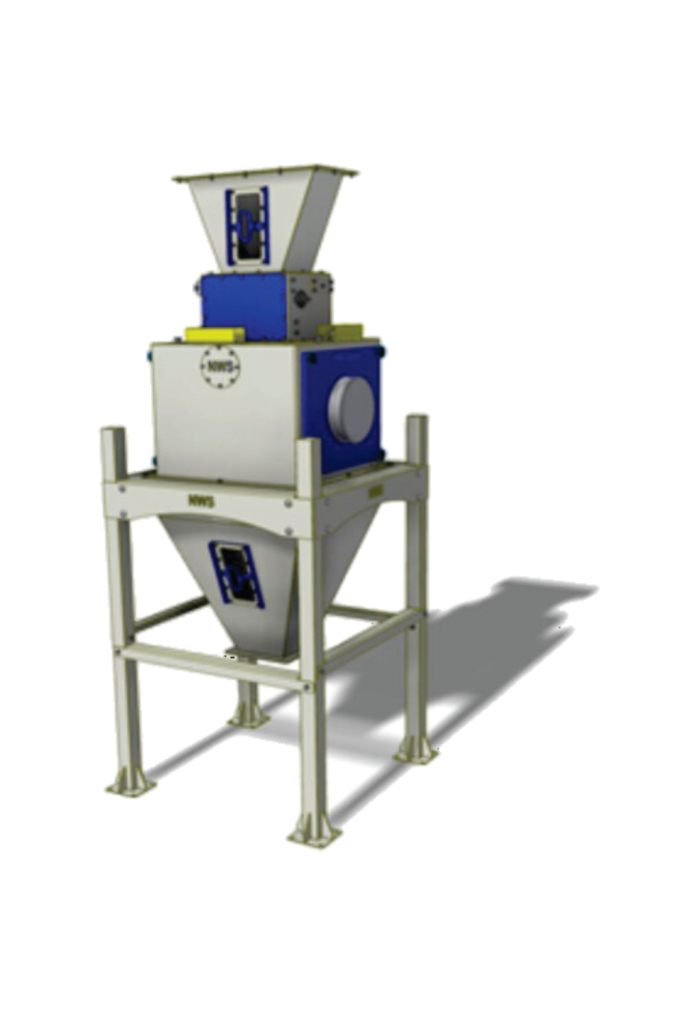

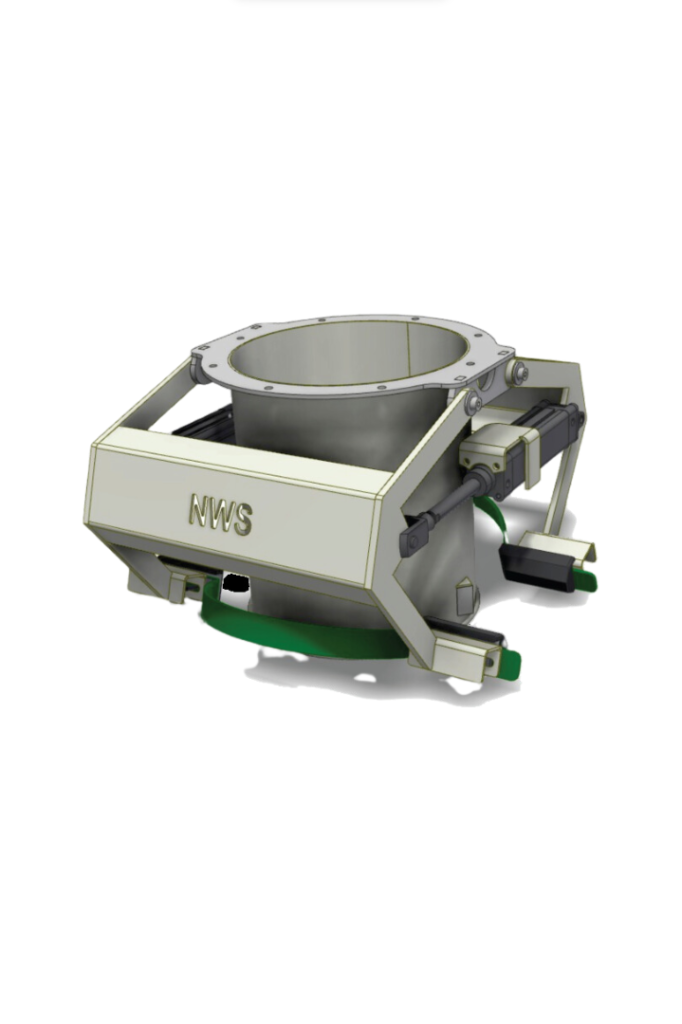

NWS PROCESS WEIGHING

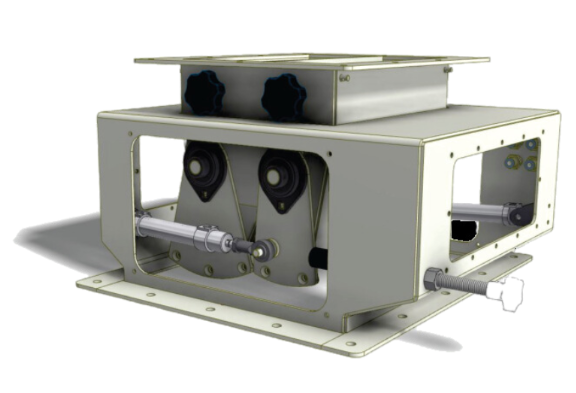

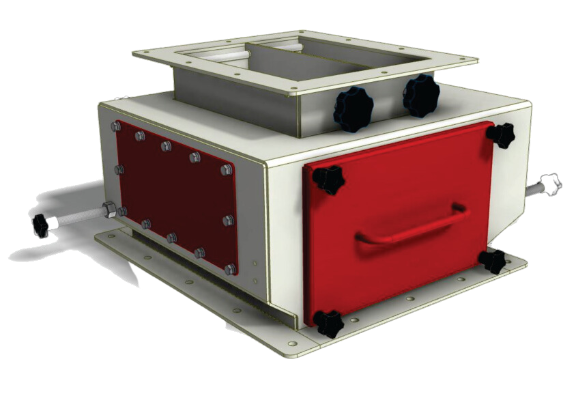

NWS process weighers consists of either a flap or a radial gate depending on the product flow, NWS 40ltr – 250ltr are fitted with three loadcells and our 300ltr – 800ltr are fitted with four loadcells.

All process weighers comes standard with a NWS GM99-CP1 controller unit and removable doors for the ease of cleaning.

NWS PROCESS WEIGHER RANGE;

– NWP40 – 3 T P/HR (product Dependant)
– NWP60 – 8 T P/HR (product Dependant)
– NWP100 – 10 T P/HR (product Dependant)
– NWP120 – 14 T P/HR (product Dependant)
– NWP150 – 16 T P/HR (product Dependant)
– NWP200 – 20 T P/HR (product Dependant)
– NWP250 – 22T P/HR (product Dependant)
– NWP300 – 60 T P/HR (product Dependant)
– NWP350 – 65 T P/HR (product Dependant)
– NWP500 – 80 T P/HR (product Dependant)
– NWP800 – 120 T P/HR (product Dependant)

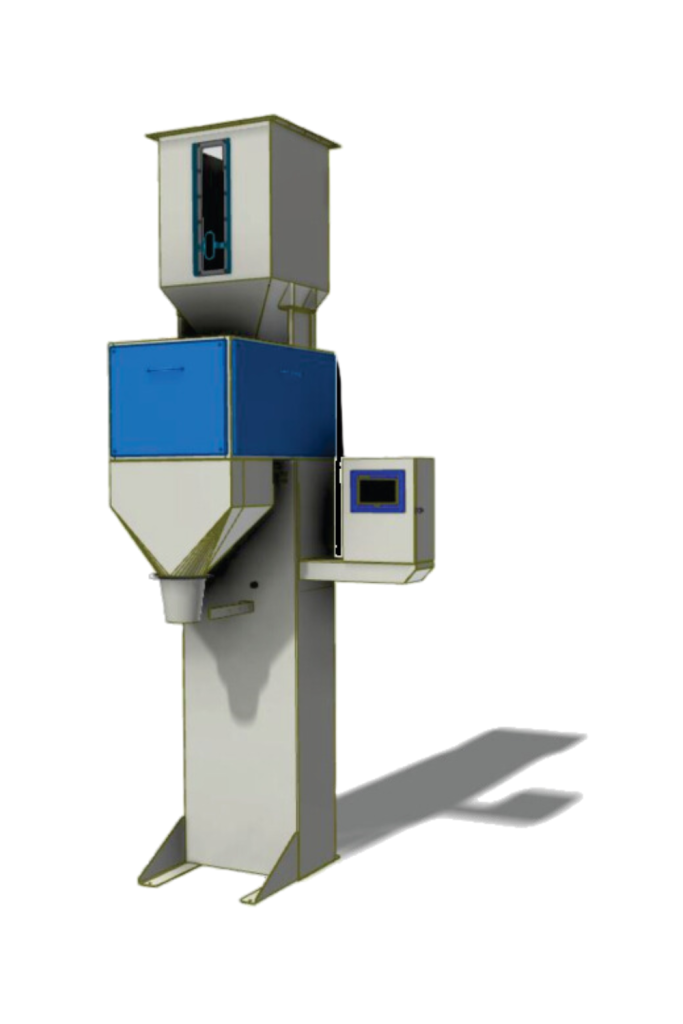

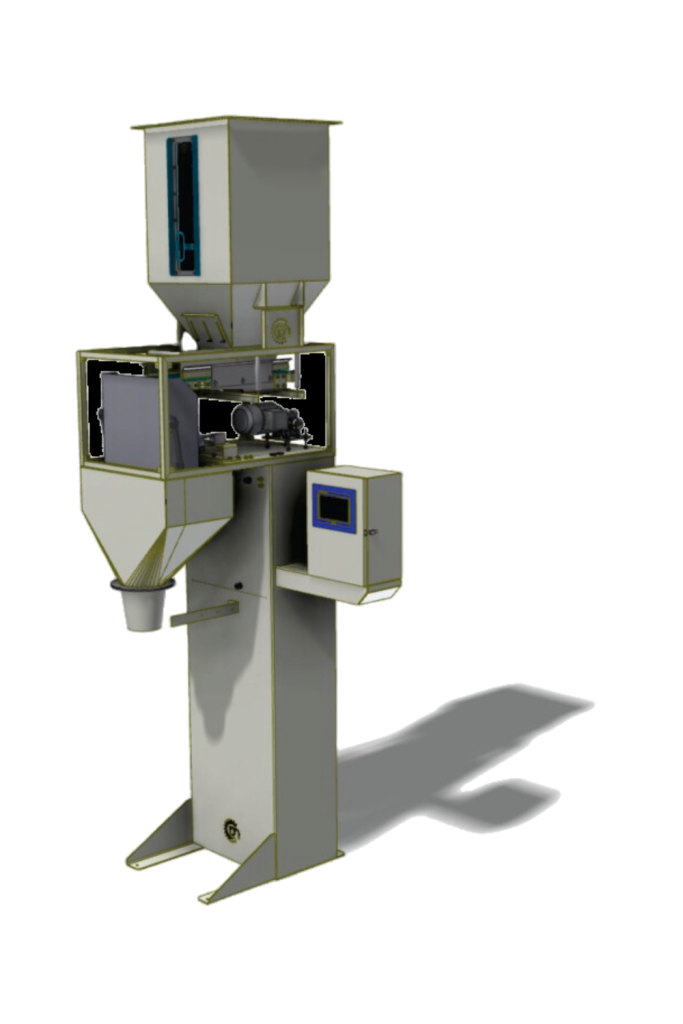

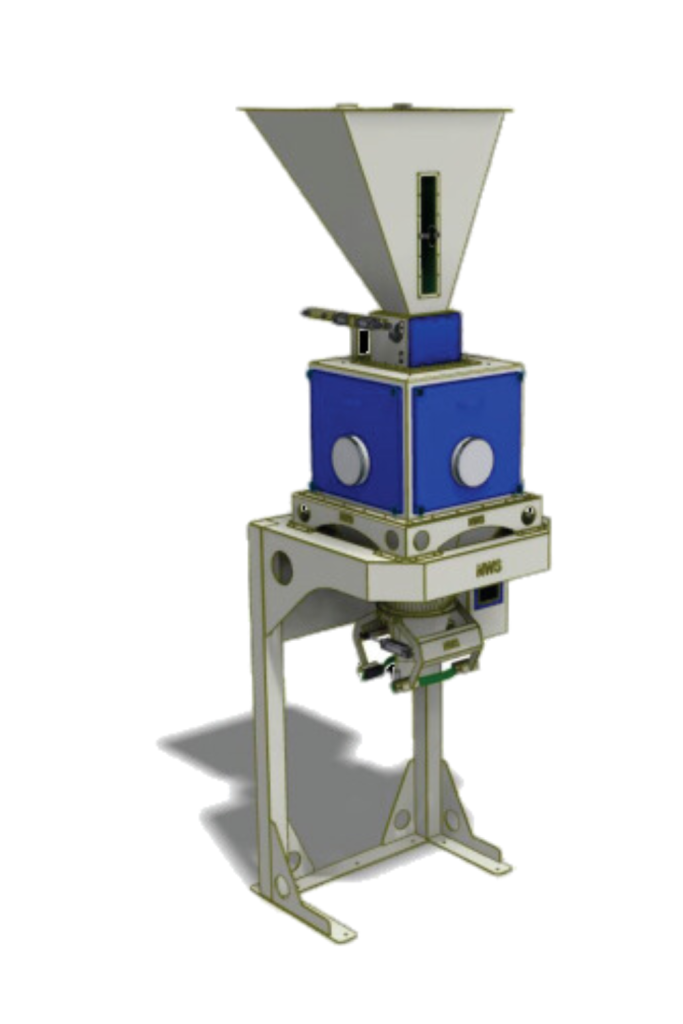

NWS N20LTR NETT WEIGHER

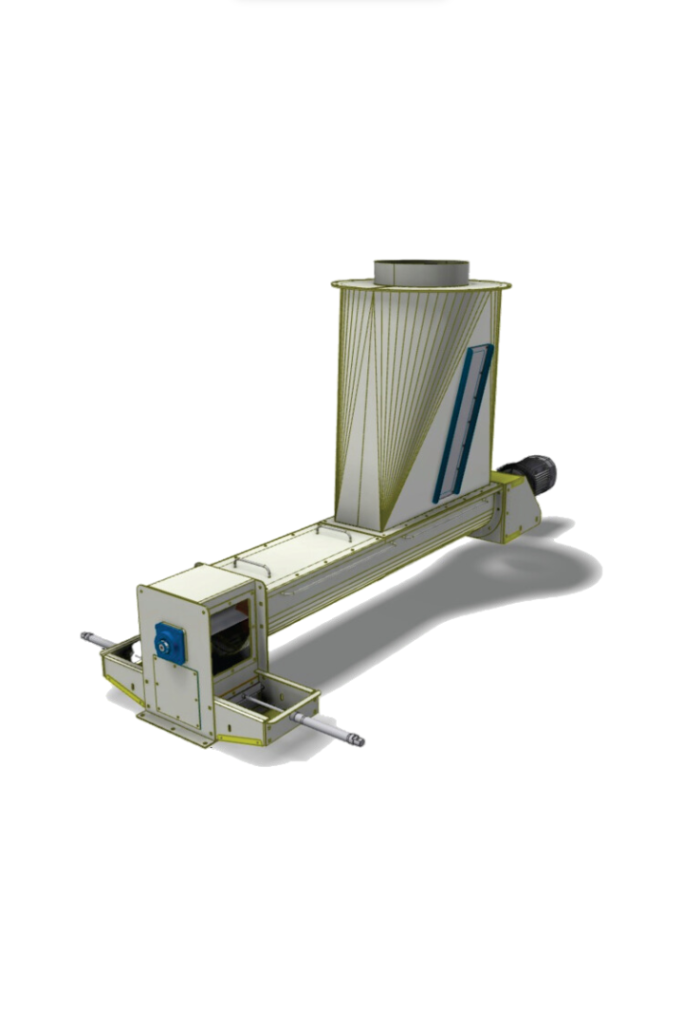

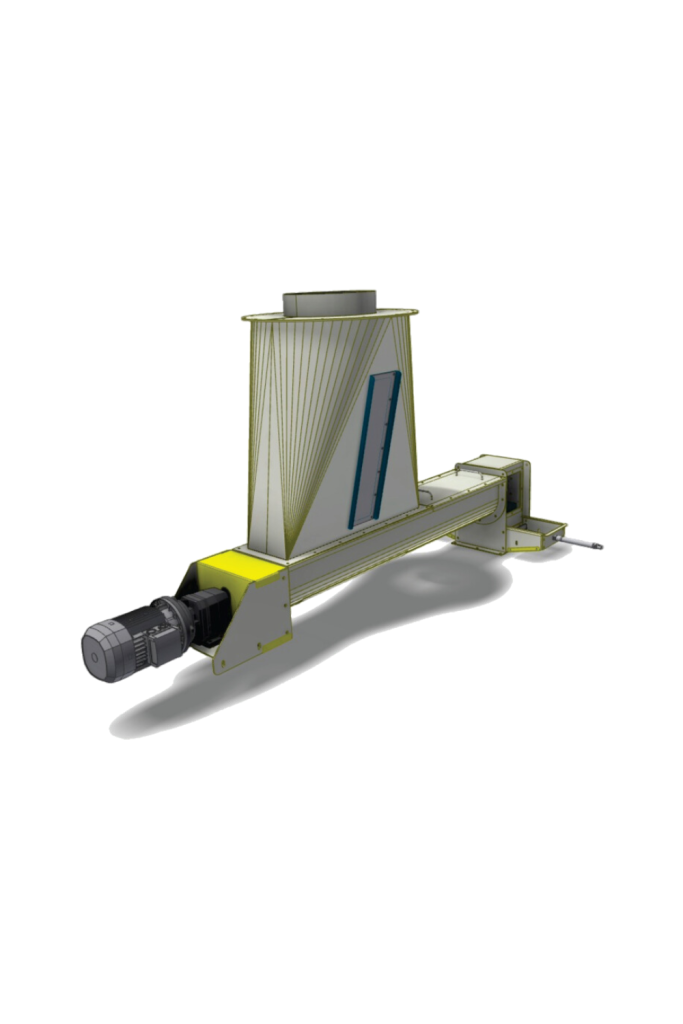

– Belt feeder/screw feeder/gravity feeder
– Loading hopper including high- and low-level sensors
– NWS 20ltr weigh hopper fitted with two loadcells
– Discharge chute
– Interchangeable bag spouts depending on bag size
– NWS GM99-CP1 controller unit
– Non-walk around support frame

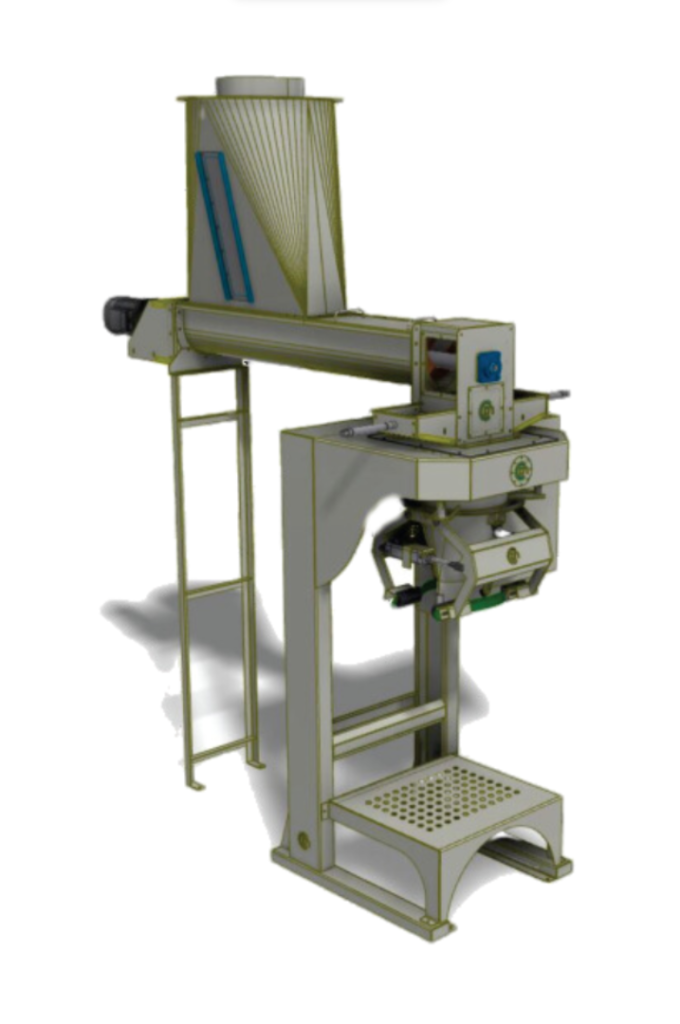

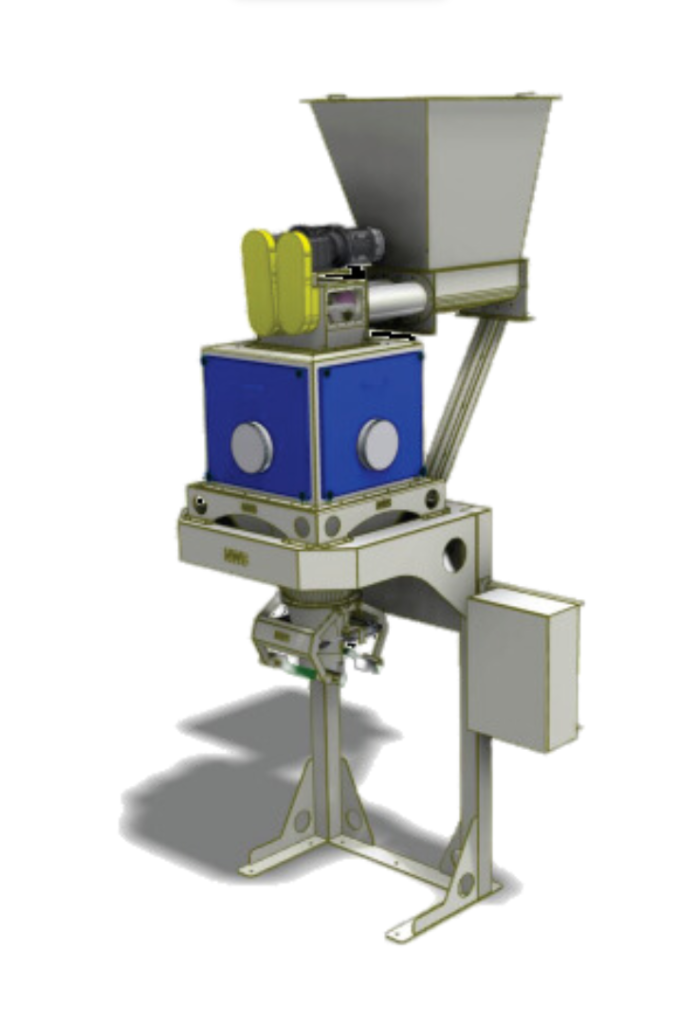

NWS SINGLE HEAD NETT WEIGHER PACKING SCALE (Non-Walk around support frame)

NWS nett weigher packing scales consists of a pre-weigh hopper fitted with three loadcells, depending on speed and product caracteristics, the NWS nett weigher can be supplied with a gravity feeder, single/double screw feeder
or a belt feeder, with a non-walk around support frame.

– Loading hopper including high- and low-level sensors
– NWS 40ltr weigh hopper / 60ltr weigh hopper / 100ltr weigh hopper
– Fitted with three loadcells
– Discharge chute
– Bag clamp unit (size depends on bag sizes)
– NWS GM99-CP1 controller unit
– Non-walk around support frame

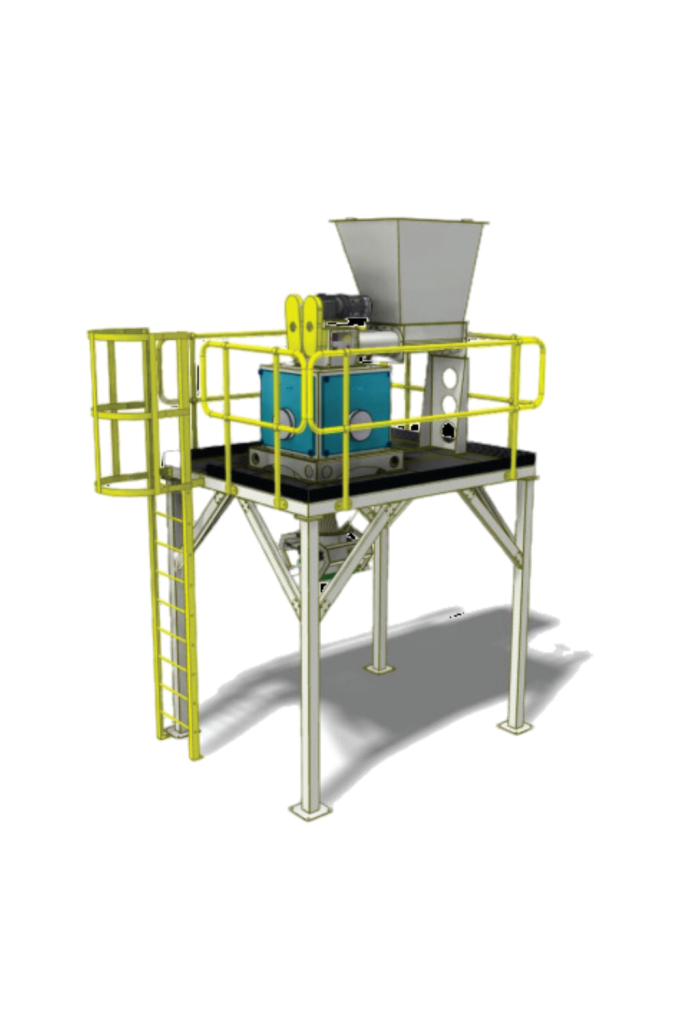

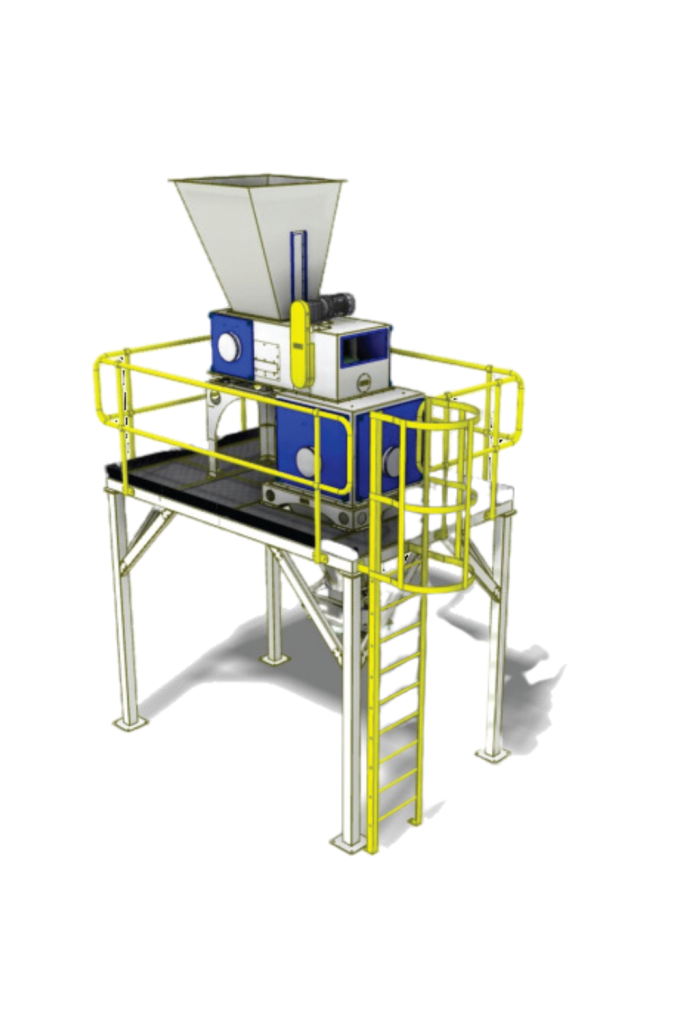

NWS SINGLE HEAD NETT WEIGHER PACKING SCALE (Heavy duty walk around support frame)

NWS nett weigher packing scales consists of a pre-weigh
hopper fitted with three loadcells, depending on speed and
product caracteristics, the NWS nett weigher can be supplied with a gravity feeder, single/double screw feeder or a belt feeder, with a heavy duty walk around support frame.

– Loading hopper including high- and low-level sensors
– NWS 40ltr weigh hopper/60ltr weigh hopper/100ltr weigh hopper
– Fitted with three loadcells
– Discharge chute
– Bag clamp unit (size depends on bag sizes)
– NWS GM99-CP1 controller unit
– Heavy duty walk around support frame with cat ladder

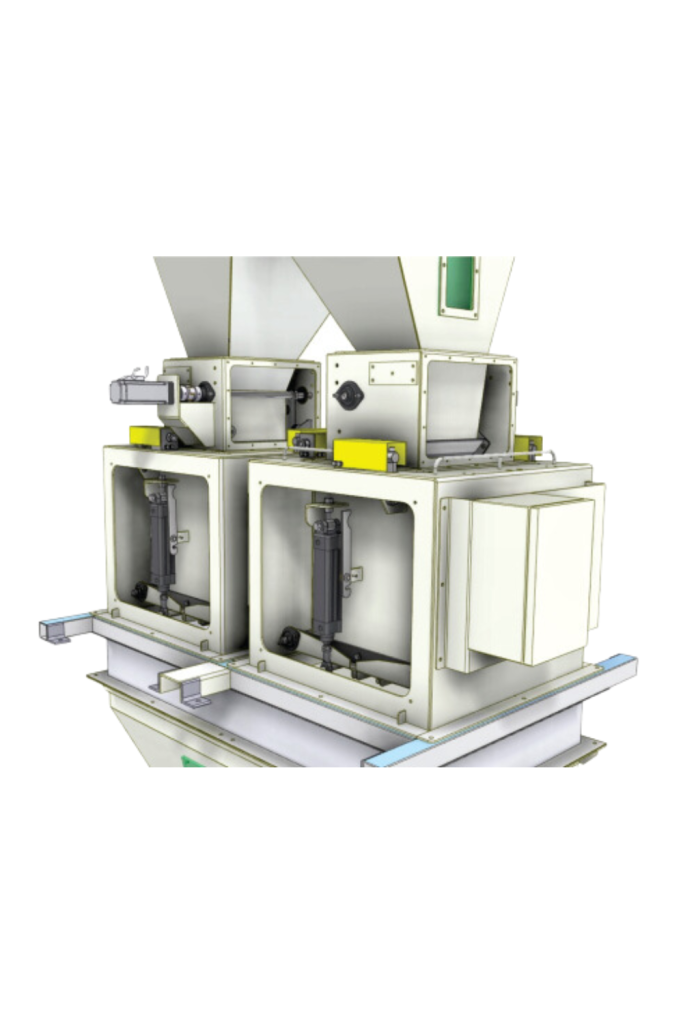

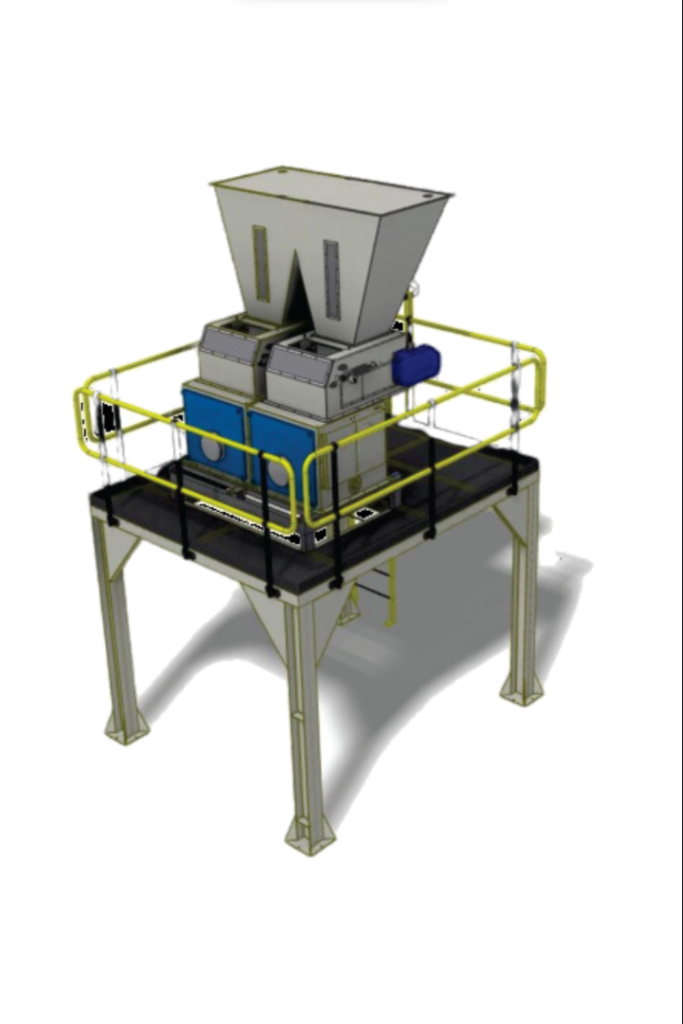

NWS DUAL HEAD NETT
WEIGHER PACKING SCALE

NWS dual head nett weigher packing scales consists of two
pre-weigh hoppers fitted with three loadcells on each weigher, depending on speed and product caracteristics, the NWS nett weigher can be supplied with gravity feeders, single/double screw feeders or a belt feeders, with a heavy duty walk around support frame.

– Dual loading hopper including high- and low-level sensors
– NWS 40ltr weigh hoppers/60ltr weigh hoppers/100ltr
weigh hoppers
– Fitted with three loadcells on each weigher
– Single discharge chute
– Bag clamp unit (size depends on bag sizes)
– NWS GM99-CP1 controller unit
– Heavy duty support frame with cat ladder

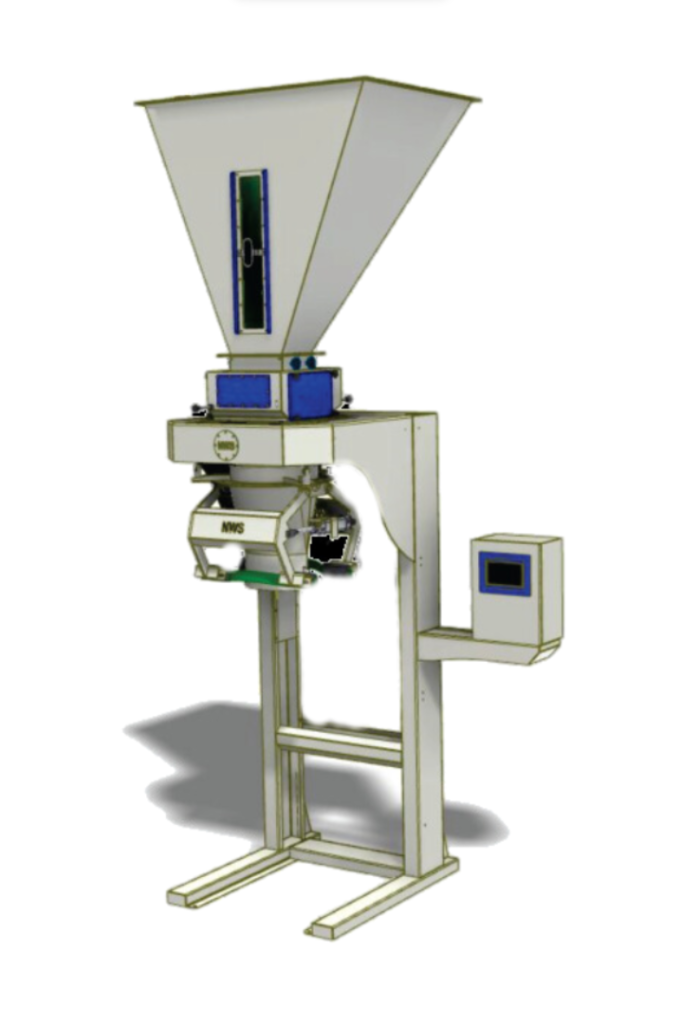

NWS GROSS WEIGHER
PACKING SCALE

NWS gross weigher packing scales does not have a preweigh hopper, the gross weigher is designed for bulk bags (50kg – 80 kg), therefor the bags weigh on the bag clamp unit. This NWS gross weigher is slightly slower that the NWS nett weigher packing scales, but can also be supplied with a gravity feeder, screw feeder or belt feeder.

– Loading hopper including high- and low-level sensors
– Bag clamp fitted with three loadcells
– Bag clamp size depends on bag size
– NWS GM99-CP1 controller unit
– Non-walk around support frame

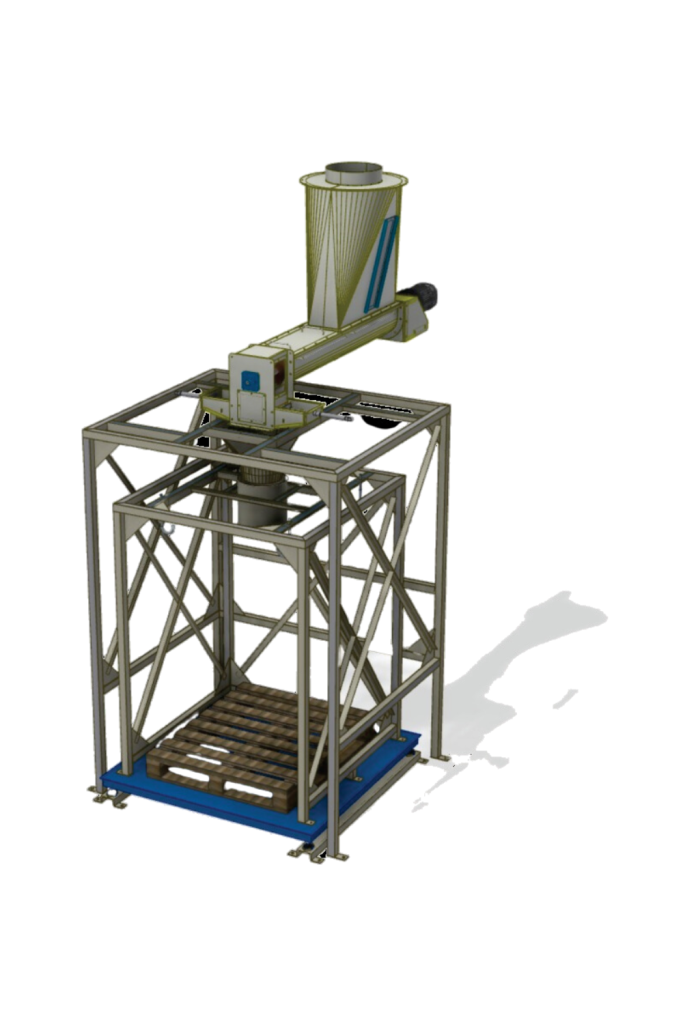

BULK BAGGING SCALE

NWS bulk bagging units are specially designed for 1/2 ton bags and for 1 ton bags, it consists of either a gravity gate feeder, screw feeder or a belt feeder.
There four hooks to keep the bag in place, to insure the
product are spreaded evenly into the bag.

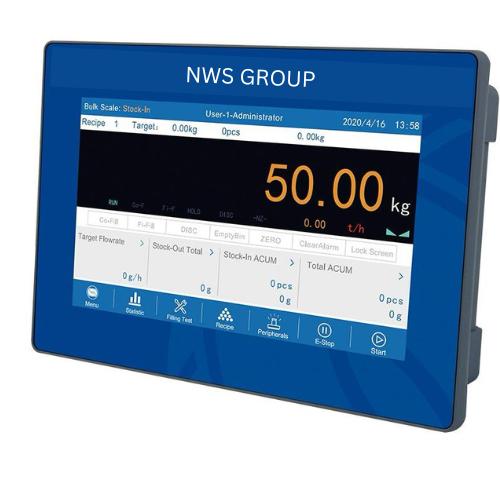

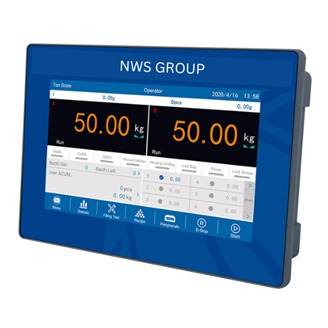

NWS GM99-CP1 CONTROLLER UNIT

NWS GM99 – CP1 HMI high speed Controller unit is built into a mild steel enclosure, including external relay boards to switch inputs and outputs.

This Controller offers advanced communication options, including RS232/485 for real-time ASCII data Transmission, and both Modbus RTU and TCP for robust industrial networking

NWS GM99 – CP1 CONTROLLER UNIT IS SUITABLE FOR;

– Process weighing
– Gross weighing
– Single head nett weighing
– Dual head nett weighing
– Quad head nett weighing
– Batch weighing

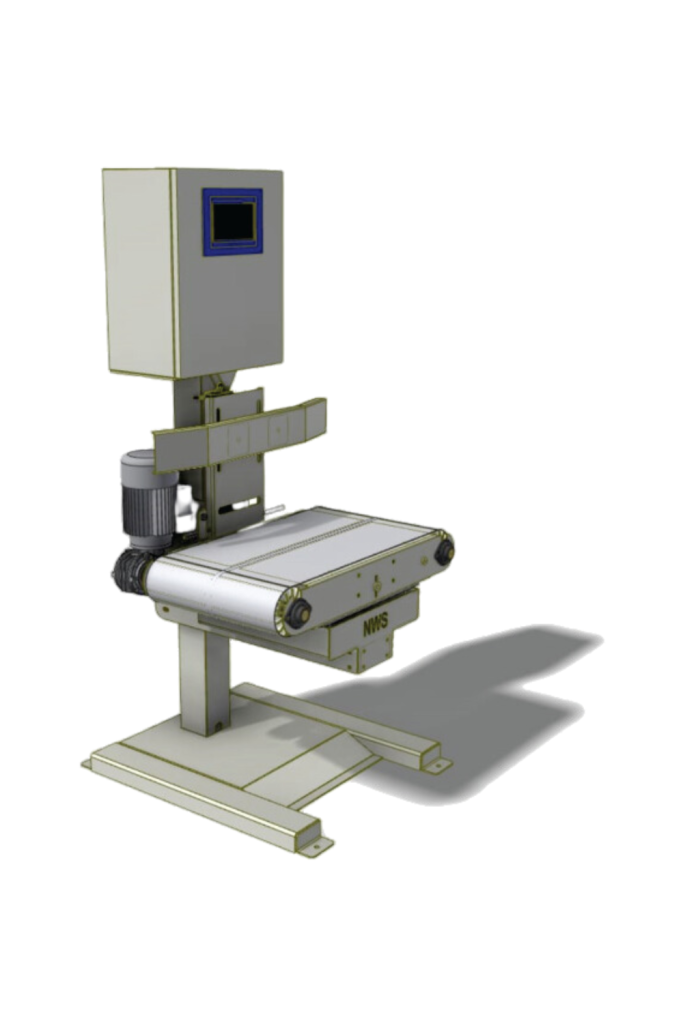

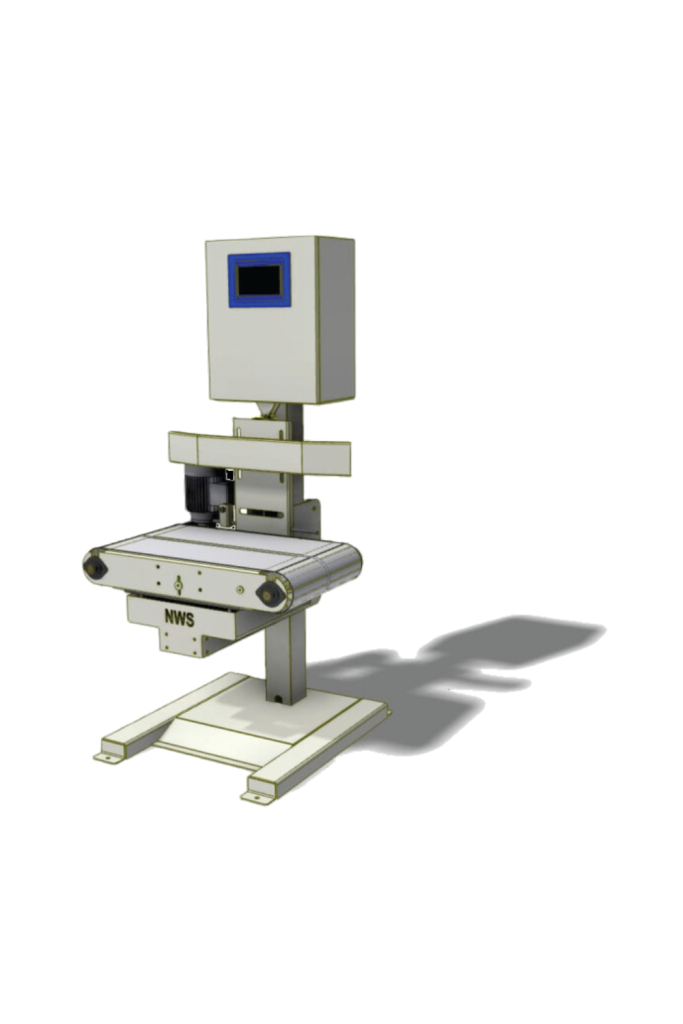

NWS GC2 CK IN-LINE
CHECK WEIGHER

NWS in-line check weigher is desighned to be installed either inline
of the stitching conveyor or at the end of the stitching
conveyor.

– NWS GM99-CP1 Controller unit
– Adjustable pedestal
– Low and high limit settings
– Records of each bag can be accessed on the controller
– Three light indicator included
(under weight, weight okay, over weight)
